Z Type Shrink Disc

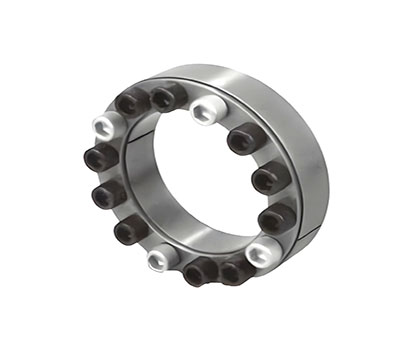

Z2 Type Locking Assembly is an integrated double conical‑ring keyless locking assembly for shaft‑hub connection. It comes complete with built‑in flange and 12.9‑grade hexagon socket clamping screws. No extra external thrust‑ring assembly is required.

Under identical bolt tightening torque, Z2 delivers higher radial pressure and transmits larger torque load compared with Z1 type. Equipped with integrated disassembly threaded holes for convenient removal. Widely used in packaging, textile, machine‑tool and general power‑transmission machinery.

‑ Double conical‑ring keyless friction connection
‑ Built‑in flange and 12.9‑grade high‑strength clamping screws
‑ No additional external thrust‑ring assembly required
‑ Higher radial pressure & larger load‑capacity versus Z1 type under same tightening torque
‑ Integrated disassembly jack‑screw holes for quick non‑destructive removal
‑ No relative axial displacement of elastic rings during tightening
‑ Easy installation, position adjustment and disassembly
‑ No key‑way required, avoids shaft weakening
‑ Overload‑protective, slipping occurs under overload to safeguard equipment
‑ Suitable for medium‑heavy load transmission applications

Specifications
Standard: JB/T 7934‑1999
Type: Z2 Locking Assembly
Structure: Double conical‑ring, integrated flange
Connection: Keyless friction connection
Clamping Screws: 12.9‑grade hexagon socket screws (built‑in)
Disassembly: Built‑in jack‑screw threaded holes
Installation: Direct mounting, no extra thrust‑ring needed

Recommended Tolerances:
‑ Shaft: h7 / h8
‑ Hub bore: H7 / H8

Surface Roughness:
‑ Mating surfaces Rz ≤ 16 μm

Note:
Z2 locking assembly does not provide gas‑tight sealing performance.
